Johnson

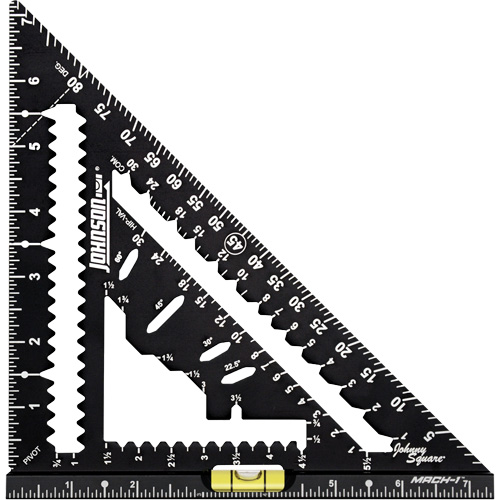

7-1/4" Johnny Square® MACH-1™ Smart Mark™ Rafter Square with Level Vial

Model: UBA594

Mfr. No.: 1904-0700V

  • 7-1/4" Johnny Square® MACH-1 Smart Mark Rafter Square with Level Vial Moffatt Supply & Specialties

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

0 In Stock

Manufacturer's Warranty

  • Limited Lifetime

Size

2" x 8"

Graduations

1/16"

Blade Material

Aluminum

Blade Finish

Anodized

Accuracy

0.001 in/ft or 1mm/m

Vial

(1) Barrel Vial

Angle Slots

22.5°, 30°, 45°, 60°

Heel Width

1"

Notch Increments

1/8"

Frame Height

7-1/4"

Country Of Origin

China

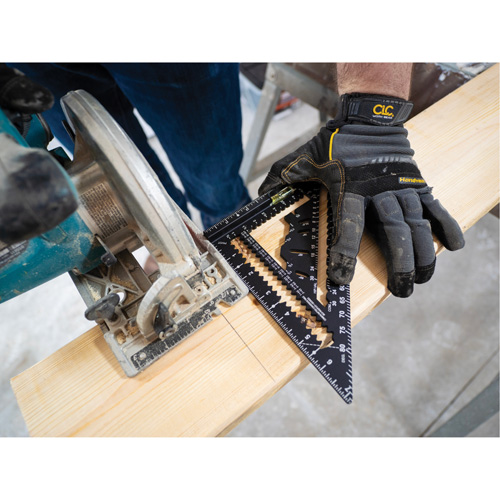

  • Speed meets precision with Johnson’s new Johnny Square® MACH-1™ rafter square with level vial – a must have tool engineered for professionals' providing exceptional durability, versatility and accuracy

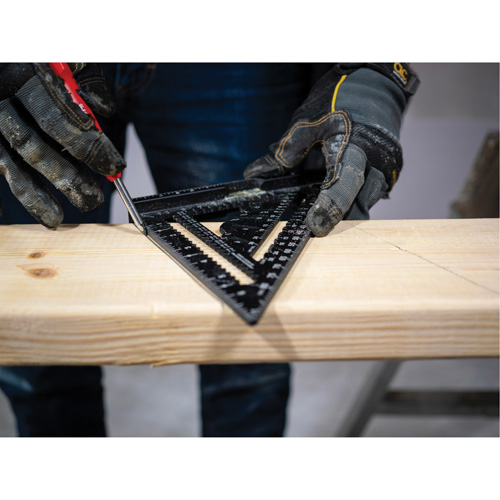

  • Smart Mark™ Cutout delivers speed and accuracy with its easily identifiable markings, cutouts and notches for layout, scribing and marking cuts
  • Marking spaces are positioned to layout 1X, 2X, 4X and 6X lumber in widths from 1" to 6" as well as LVL's
  • Additional slots are positioned to mark 22.5, 30, 45 and 60 degree angle cuts
  • V-notches are located at each roof pitch to help accurately align your pencil when marking common top cuts
  • The frame has 1/16" scale graduations for precision and measures all the way to 7-1/4" to reach the full width of a 2x8 material
  • Scribe notches for ripping lumber are positioned every 1/8"
  • The 1" wide multifunctional heel with replaceable level vial serves as a torpedo to indicate level and plumb and allows angle or roof pitch measurements on existing structures
  • The heel also features 1/16" scale graduations on the bottom and both sides offering maximum versatility with rapid and reliable measuring
  • Hi-visibility EZ-Read™ graduations and numbers are laser etched deep into the surface to resistant fading, scratching or deterioration, providing long-lasting results even under tough and demanding work conditions
  • Crafted from solid aluminum with CNC machined edges and vial holder for ultimate precision and accuracy
  • The matte black anodized coating reduces glare in direct sunlight and provides protection from rust and corrosion
