Denios

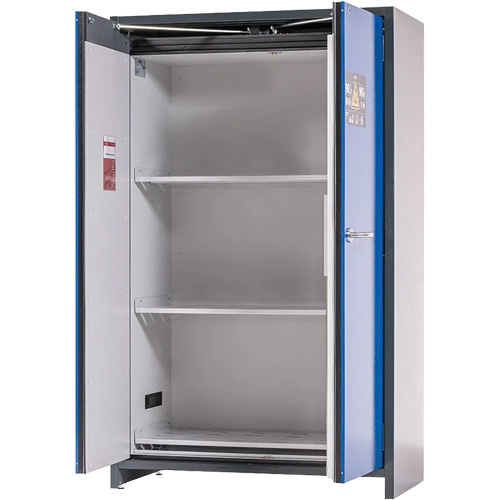

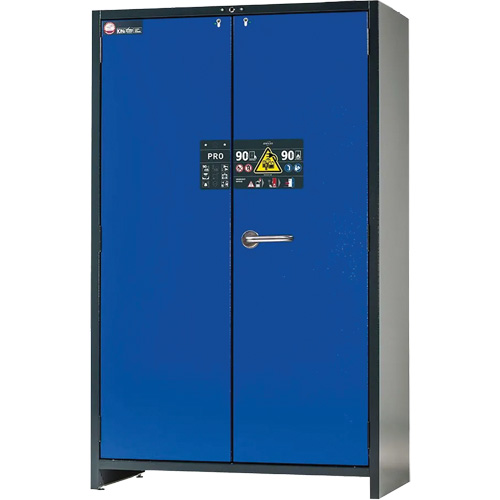

Lithium-ion Storage Cabinet with 90-Minute Fire Resistance

Model: SHR906

Mfr. No.: M31-8300

  • Lithium-ion Storage Cabinet with 90-Minute Fire Resistance Moffatt Supply & Specialties

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

0 In Stock

Includes

  • Bottom Collection Sump

Colour

Blue/Grey

No. Of Doors

2

No. Of Shelves

3

Door Type

Self-Closing

Width

24.2"

Depth

47"

Height

77"

Application

Lithium Batteries, Lithium-ion Battery

Energy Containment Rating

2.1 kWh per Shelf, 10.5 kWh per Cabinet

Fire Rating

90 min.

Material

Sheet Steel

Surface Type

Powder Coated

Weight

1034 lbs.

Internal Dimensions

41.3" L x 20.5" W x 64.8" H

Country Of Origin

Germany

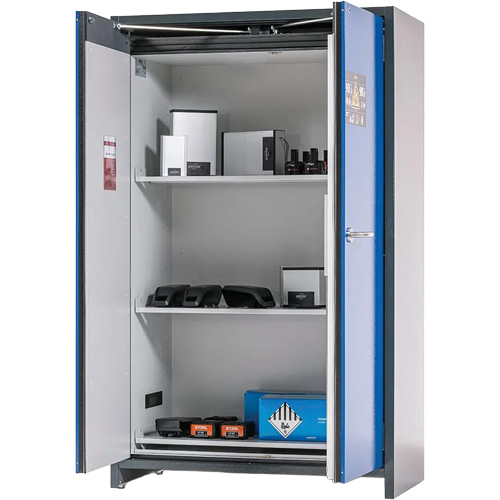

  • For storage of undamaged lithium-Ion batteries
  • All-round protection: 90 min fire protection from the outside in and inside out
  • Propagation-tested, insulated shelves designed to slow fire propagation, which limits flame propagation across storage levels while supporting efficient waste heat

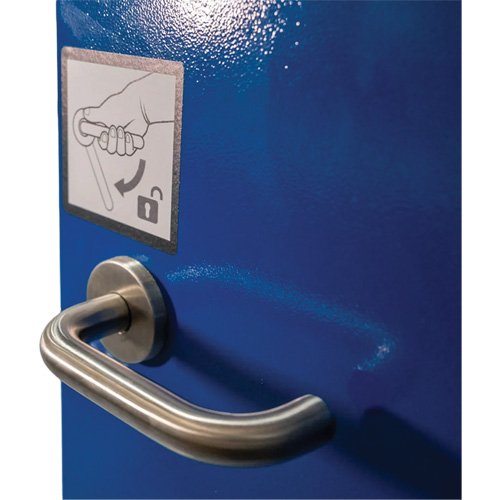

  • With permanently self-closing doors and quality oil-damped door closer
  • Doors can be locked with a profile cylinder (closing system compatible) and lock indicator (red/green)
  • Accessible underneath, allowing for easy moving and quick rapid evacuation in an emergency
  • Extremely robust construction with scratch -proof paints
  • The quantity of batteries should match the quantity of battery units and chargers, collectively covering 60% of the grid shelf space
  • With adjustable feet to be used on uneven floor surfaces
  • Type-tested fire resistance of 90 minutes (type 90) from outside to inside in accordance with DIN EN 14470-1, fire resistance of 90 minutes from inside to outside in accordance with the DIN EN 1363-1 standard
  • Recommended that the cabinets are sited at ground floor-level so that evacuation can take place quickly in the event of an incident
  • Cabinets with a similar fire-resistant construction have been tested to FM/UL/EN standards for flammable liquid storage
